Plus System Compatibility Guide



Use this guide to find the HAS number on your Cube, Clip, Stick mics, and the Hub receiver. The HAS number helps you identify the model of your Plus system and check compatibility between different Plus system devices.

There's a HAS number label on each of the Hub receivers and Plus system mics.
It looks like this: HAS-xxxxx

Use the tables below to look up your HAS number and confirm which other devices it's compatible with.

To see exactly where the HAS number is located on each mic and receiver, check the pictures further down.

HAS Number Compatibility Tables
Cube mic
Clip mic
Stick mic
Hub receiver

HAS Number Compatibility Tables



Hub HAS number & latest FW Hub Model Number Compatible Mic HAS Number

Hub 2 channels
HAS-00162
FW 1.11

CBPLRX002 Cube
HAS-00158
HAS-00204

Clip
HAS-00160
HAS-00205

Stick
HAS-00206
Hub 2 channels
HAS-00202
FW 2.1
CBPLRX003 Cube
HAS-00204

Clip
HAS-00205

Stick
HAS-00206
Hub 2 channels
HAS-00244
FW 2.1
CBPLRX004 Cube
HAS-00204

Clip
HAS-00205

Stick
HAS-00206
Hub 4 channels
HAS-00203
FW 2.1
CBPLRX003 Cube
HAS-00204

Clip
HAS-00205

Stick
HAS-00206
Hub 4 channels
HAS-00245
FW 2.1
CBPLRX004 Cube
HAS-00204

Clip
HAS-00205

Stick
HAS-00206



Mic HAS number & latest FW Compatible Hub HAS Number
Cube mic
HAS-00158
FW 1.11
Hub 2 channels
HAS-00162
Clip mic
HAS-00160
FW 1.11
Hub 2 channels
HAS-00162
Cube mic
HAS-00204
FW 2.1
Hub 2 channels                       Hub 4 channels
HAS-00162                            HAS-00203
HAS-00202                           HAS-00245
HAS-00244
Clip mic
HAS-00205
FW 2.1
Hub 2 channels                       Hub 4 channels
HAS-00162                            HAS-00203
HAS-00202                           HAS-00245
HAS-00244
Stick mic
HAS-00206
FW 2.1
Hub 2 channels                       Hub 4 channels
HAS-00162                            HAS-00203
HAS-00202                           HAS-00245
HAS-00244

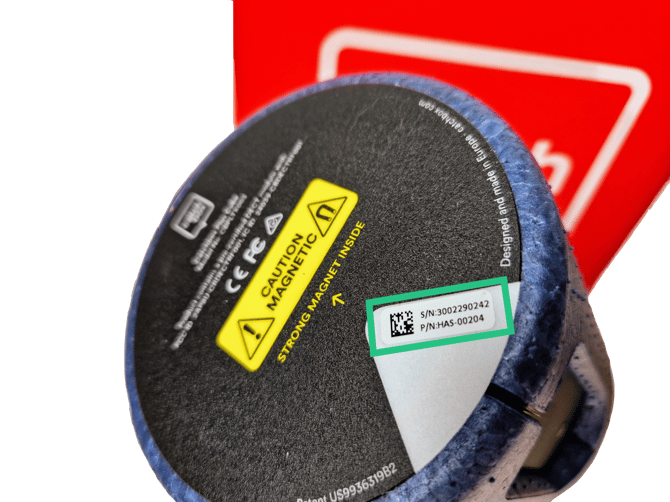

Cube mic

Twist and pull the Cube capsule out of the soft cover. The label is located on the bottom of the capsule. Here's a video showing how to remove the Cube mic capsule.

Cube_HAS for KB

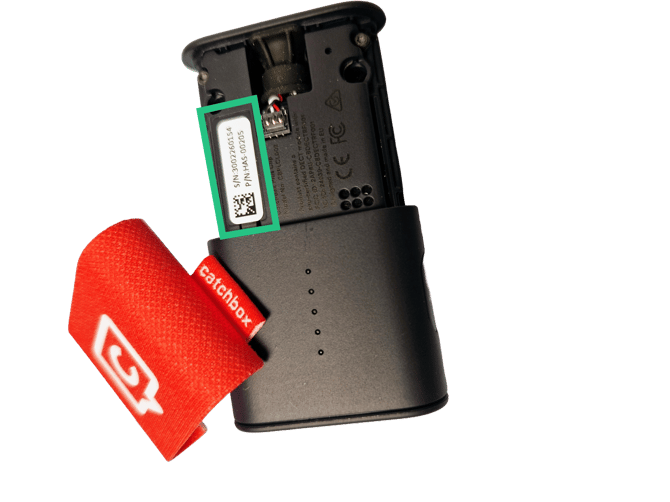

Clip mic

Remove the Clip jacket to find HAS number label.  Watch the video to see how to remove the mic jacket.





Clip_HAS KB

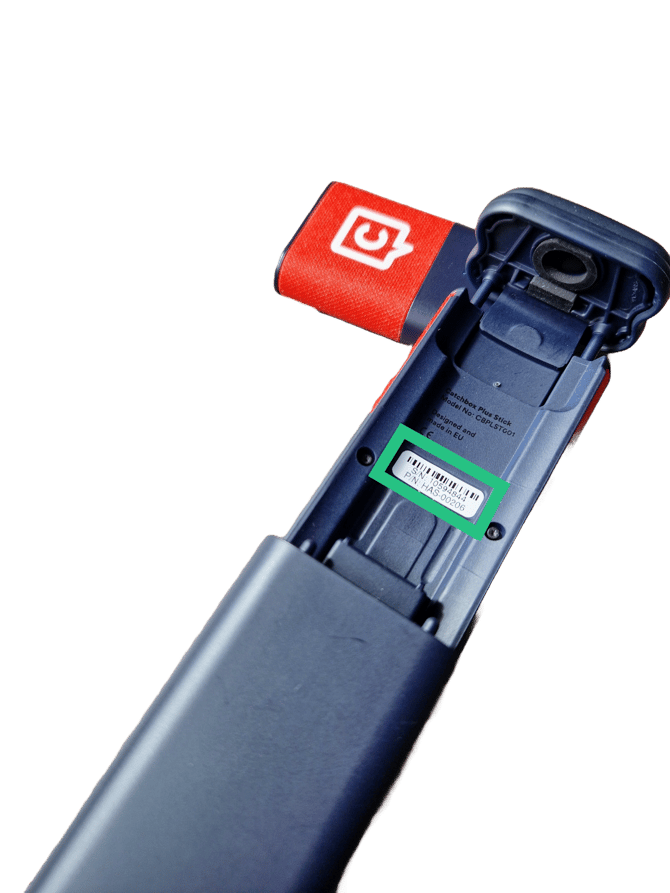

Stick mic

The HAS number for the Stick mic is located on the Stick adapter. To see the label, remove the Clip mic module from the adapter. The HAS number is underneath, on the adapter. Watch the video to see how to take out the Clip properly.



Stick_HAS_Number

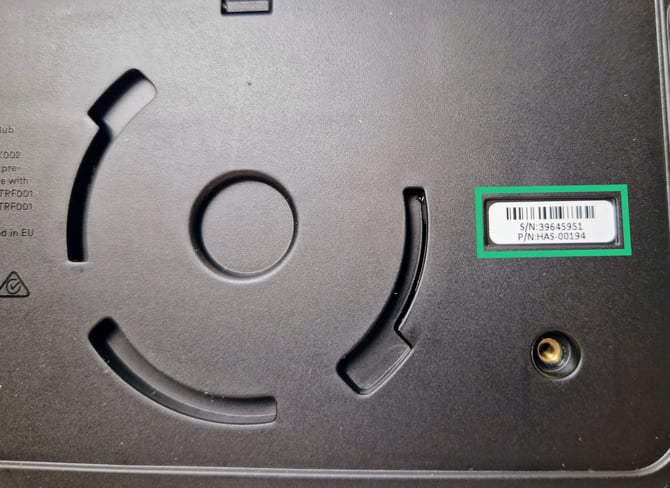

Hub receiver

Turn the Hub receiver around and look for the product model number on the upper left side. The white sticker with  HAS number is on the back as well, on the lower right side.



Hub_HAS for KB

Hub_Model_No for KB
