How to set up the Beltpack Module?

1. Set up your third-party system:

• Setup a compatible third-party beltpack transmitter and receiver. Sync the two units.
• Connect the receiver to your sound system.

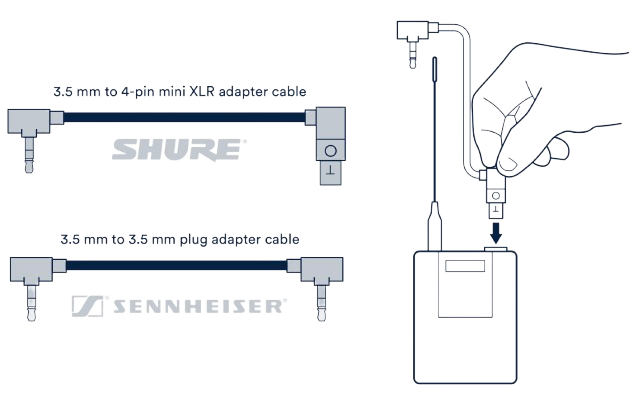

2. Select and connect the adapter cable

• Choose an adapter cable based on  the brand and model of your third-party transmitter. You can use one of the two cables included in the set  (compatible with Shure and Sennheiser transmitters).
• If your transmitter is from a different brand , you will need to obtain a compatible cable separately.
• Once you have the correct cable, connect it to the microphone input of the transmitter.
• See Beltpack Module Compatibility List for more details.

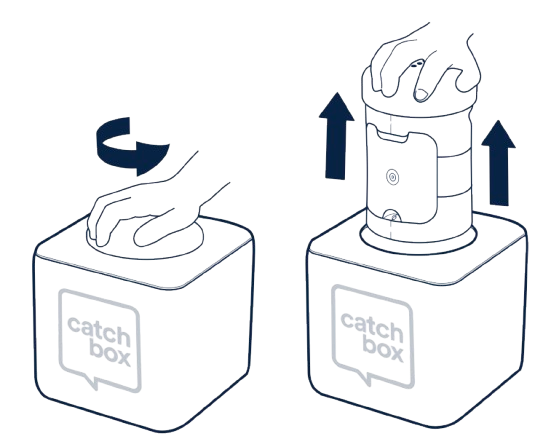

3. Remove the capsule

• The capsule is held in place by magnets located on the bottom of both the cover and the capsule. To remove it, hold the capsule by the foam  cap and turn it 90 degrees.
• Once turned, you can pull the capsule out as the twist disengages the magnets.

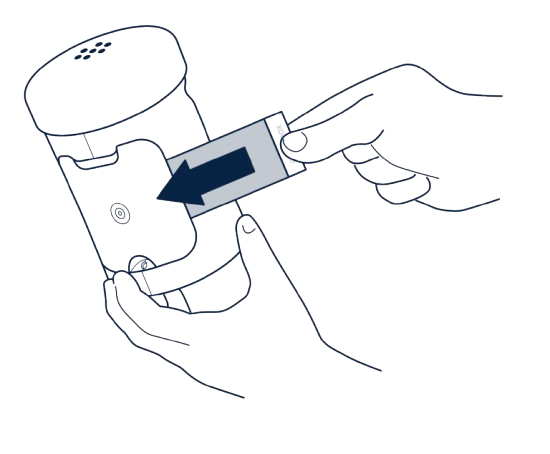

4. Open the velcro strap
Open the velcro strap surrounding the device by pulling it gently along the surface of the Module.

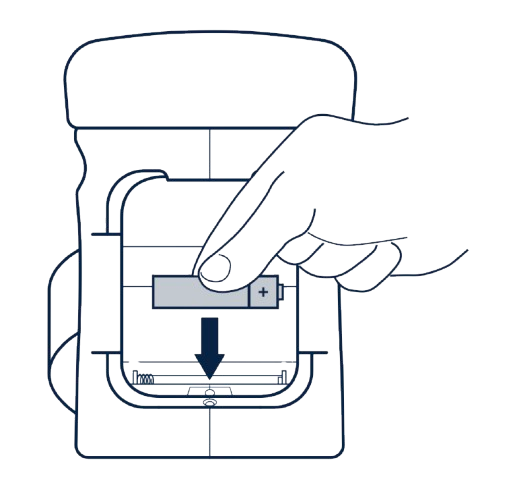

5. Insert the battery

• Insert one AA battery into the bottom part of the cavity.

• Switch on the third-party transmitter to enable wireless audio transmission.

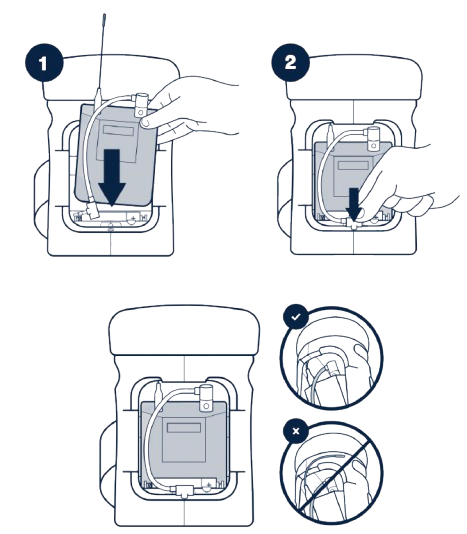

• Place the transmitter securely inside the cavity of the Module, making sure no antennas or cables are sticking out.
• Ensure the cable is placed along the left side of the cavity.
• Connect the third-party transmitter to the Beltpack Module by plugging the adapter cable’s 3.5mm (⅛ in) connector into the port located at the bottom part of the cavity.

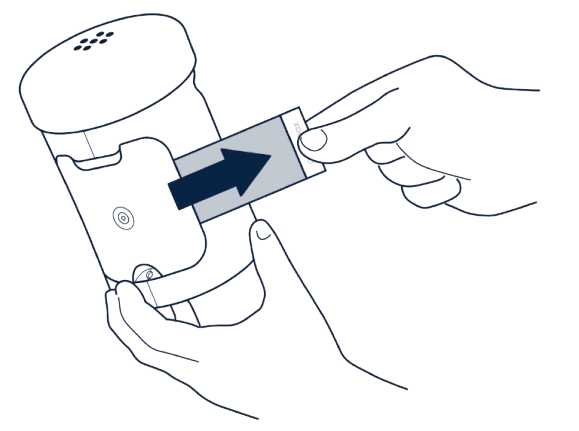

• Secure the velcro strap tightly around the Beltpack Module, ensuring that the soft foam padding firmly holds the transmitter in place.

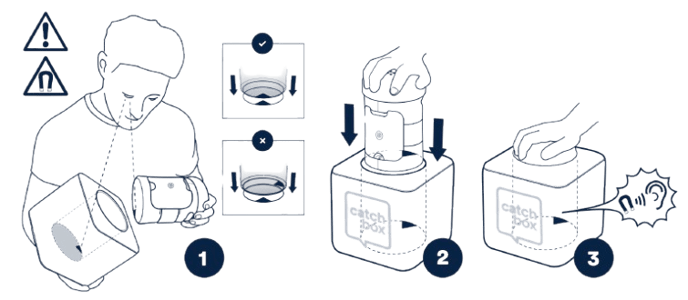

• Place the Beltpack Module capsule inside the soft cover, making sure to align the magnetic locking mechanisms of both the cover and the capsule.

• Test the volume level by speaking into the microphone and adjusting it using the volume controls on the third-party transmitter or receiver.
