How to pair Catchbox mics with the Hub?



The Hub DSP receiver can be paired with up to two mics/transmitters simultaneously. To reduce the setup time, each transmitter and Hub unit have been paired in our production facility before shipping.

In case you need to pair the Cube, Clip or Stick mics with the Hub on your own, here's how to do it and what do the different LED lights mean on the microphones:

Cube audience mic (video)

Clip presenter mic

Stick handheld mic

Status LED behaviour

Cube audience mic (video)

  1. Make sure that the Cube is not further than 3m / 10 ft of the Hub receiver
  2. On the Hub screen: navigate to the IN section  --> Cube mic
  3. Use the right navigation button to highlight the Settings section and press the middle button to confirm
  4. Navigate to the Pairing section and activate pairing on the Hub
  5. Remove the Cube capsule from the soft cover by twisting and pulling to release the magnets
  6. Locate the Pairing button (first button from the top of the capsule)
  7. Press and hold the Pairing button until it starts blinking slowly
  8. Release the button once blinking begins
  9. Wait for the pairing process to complete. Successful pairing is indicated by green LED lights on both the Hub and Cube, as well as with a confirmation message on the Hub screen.

Clip presenter mic

  1. Make sure that the Clip is not further than 3m / 10 ft of the Hub receiver
  2. On the Hub screen: navigate to the IN section  --> Clip mic
  3. Use the right navigation button to highlight the Settings section and press the middle button to confirm
  4. Navigate to the Pairing section and activate pairing on the Hub
  5. Press and hold the Mute button until it starts blinking slowly (Mute button is on the side of the Clip)
  6. Release the button once blinking begins
  7. Wait for the pairing process to complete. Successful pairing is indicated by green LED lights on both the Hub and Clip, as well as with a confirmation message on the Hub screen.

Stick handheld mic

  1. Make sure that the Stick mic is not further than 3m / 10 ft of the Hub receiver
  2. On the Hub screen: navigate to the IN section  --> Stick mic
  3. Use the right navigation button to highlight the Settings section and press the middle button to confirm
  4. Navigate to the Pairing section and activate pairing on the Hub
  5. Press and hold the Mute button until it starts blinking slowly (Mute button is on the side of the Stick)
  6. Release the button once blinking begins
  7. Wait for the pairing process to complete. Successful pairing is indicated by green LED lights on both the Hub and Stick, as well as with a confirmation message on the Hub screen.

Status LED behaviour

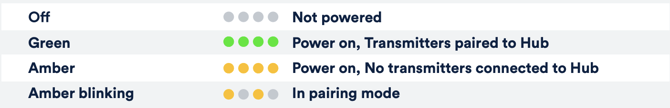

Here's an a short guide explaining what the different LED lights on the microphones indicate about the pairing status with the Hub and power levels.

A status indicator chart for a device, showing different states and their corresponding LED colors.
