Catchbox Plus System has evolved over the years.
Here are a few tips that will help you tell your system apart.
There's a HAS number label on each of the Hub Receivers and Plus system mics.
It looks like this: HAS-xxxxx.
Here's how to match yours:
| Gen1 System (most recent FW: 1.11) |
|
| Hub | HAS-00162 |
| Clip mic | HAS-00160 |
| Cube mic | HAS-00158 |
| Gen2 System (most recent FW: 2.1) |
|
| Hub 2-channel | HAS-00202 |
| Hub 4-channel | HAS-00203 |
| Clip mic | HAS-00205 |
| Cube mic | HAS-00204 |
| Gen3 System (no FW update needed) |
|
| Hub 2-channel | HAS-00244 |
| Hub 4-channel | HAS-00245 |
| Clip mic | HAS-00205 |
| Cube mic | HAS-00204 |
Here's where the HAS number labels are located on the Receiver and the mics.

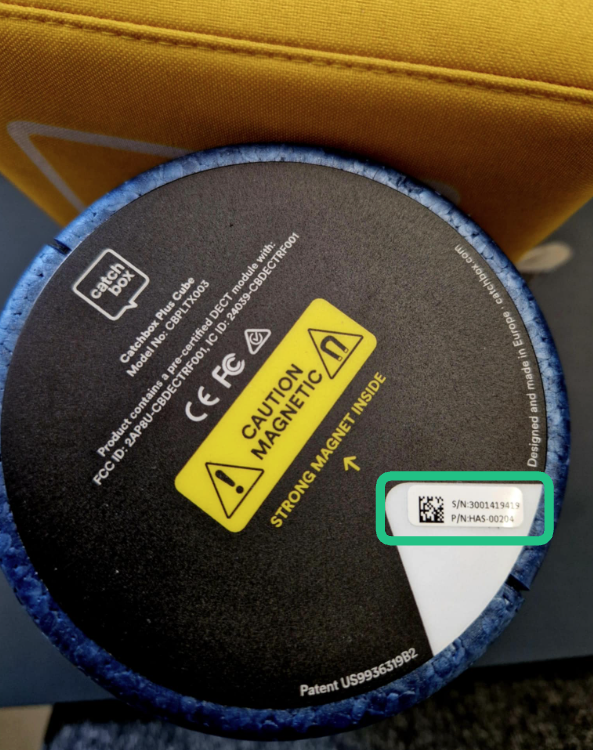

Cube mic
Twist and pull the Cube capsule out of the soft cover. The label is located on the bottom of the capsule.
Clip mic
Remove the Clip jacket to find HAS number label.
